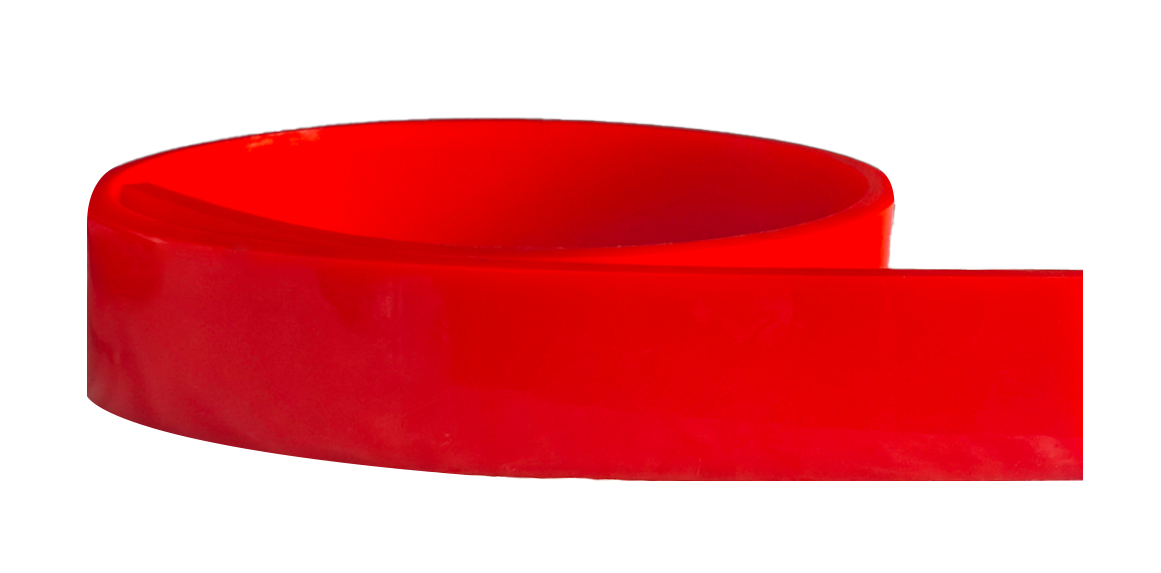

THE HP-SP Polyurethane skirting is crafted from a premium-grade polyurethane compound, delivering excellent resistance to cutting, impact, and abrasion while boasting superior physical properties—including mechanical strength and tear resistance; it comes with a beveled edge, is designed to be installed and adjusted to sit just above the conveyor belt (forming a tight seal), and is rigid enough to act as a solid, impact-resistant sealing component that reduces material spillage while minimizing the risk of damage to the conveyor belt. The skirting is supplied as pre-cut sections, with each segment measuring 15 meters for convenient and efficient setup.
Area of Application
· Skirting rubber for heavy-duty loading areas.
· Suitable for fine-grained and dusty materials.
· Chute sealing systems for conveyor transfer points.
Properties
· Belt-friendly, with a hardness of 62±5 Shore A.
· Various widths and thicknesses are available.
· Excellent wear resistance, suitable for heavy-wear conditions.
· Fire Retardant Anti-Static polyurethane soft skirts are available.
· Excellent sealing performance, featuring a 45-degree beveled edge.
· Reduced material wastage, available in standard lengths of 15m.
Construction | Specification | Unit |
Colour | Red/Orange | |
Material | Polyurethane | |
Hardness | 62±5 | Shore A |
Tensile strength | ≥35 | N/mm² |
Elongation at break | ≥650 | % |
Density | 1.22±0.1 | g/cm³ |
Edge | Bevel 45° | degree |
Thickness | 12/15 | mm |
Width | 150/200 | mm |
Length | 15000 | mm |
