Applications
Universally applicable as a scraper for granular, slightly sticky, and moist materials, HP-CAB is widely used in industries such as mining, aggregates, cement, ports, and other bulk handling operations. It effectively reduces material carryback, protects downstream equipment, and improves overall conveyor system efficiency.
Product Overview
Key Features & Benefits
Excellent Wear Resistance: Durable outer layer withstands continuous abrasive contact, extending service life and reducing maintenance frequency.
Belt-Friendly Design: Low-friction properties ensure efficient cleaning without excessive belt wear, helping to prolong the lifespan of your conveyor belts.
Flexible Sizing: Available in thicknesses from 15–40 mm and production widths up to 2,000 mm, easily adapting to various cleaner designs and conveyor system requirements.
Wide Temperature Range: Operates reliably from -45°C to +70°C, performing consistently in both extreme cold and warm operating conditions.
Optimized Installation: Can protrude from its support by up to 1.5 times its thickness, allowing flexible blade positioning and effective cleaning angle adjustment.
Technical Specifications
Product | HP-CAB |

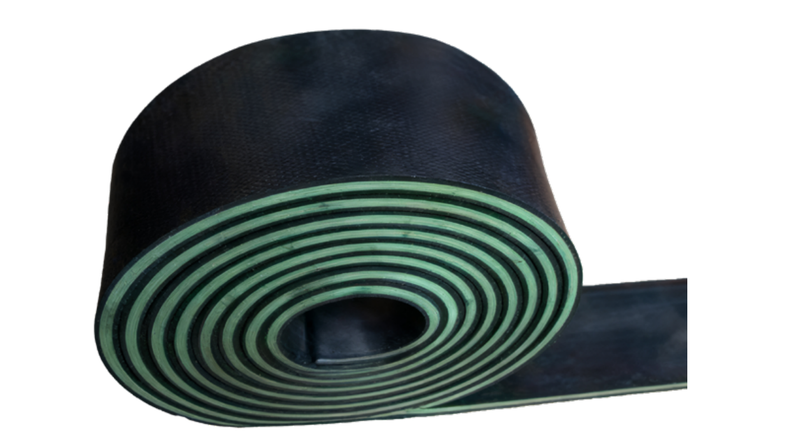

Structure | Three-ply combi scraping rubber (Black/Green/Black) |
Polymer Base | NR/BR |
Hardness | 65 / 45 / 65 Shore A (for each layer respectively) |
Specific Weight | 1.12 / 1.08 / 1.12 g/cm³ (for each layer respectively) |
Thickness Range | 15–40 mm |
Max Production Width | 2,000 mm |
Operating Temperature | -45°C to +70°C |
At Hanpeng, we provide HP-CAB Scraper Rubber along with a full range of conveyor cleaning products and technical support to help our customers achieve efficient, reliable belt cleaning performance.
