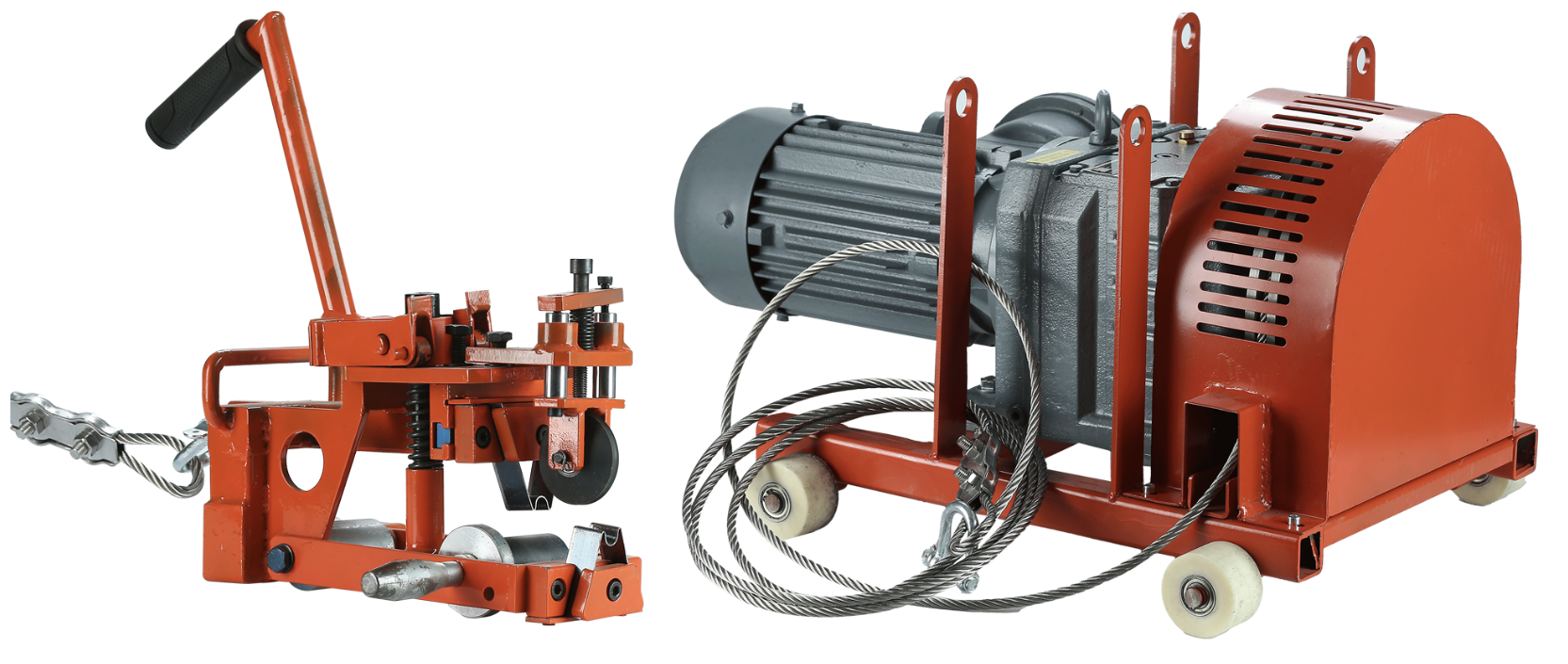

The Steel Cord Conveyor Belt Stripper is a specialized tool designed to streamline the construction process for steel cord conveyor belt splicing. Its primary function is to efficiently separate the steel cords from the rubber in the steel cord core conveyor belts, ensuring the belt is ready for the vulcanization process. This device not only saves valuable time and improves overall work efficiency but also reduces the physical strain on operators, enhancing both comfort and safety. As an essential piece of equipment in modern industrial production, it plays a crucial role in ensuring the smooth and effective repair and maintenance of steel cord conveyor belts.
So, how does the Steel Cord Conveyor Belt Stripper work? The process begins by identifying the joint of the steel cord conveyor belt. First, 200mm of steel cord is stripped using conventional methods. Next, the stripper is set up by selecting the appropriate upper and lower blades based on the steel cord's diameter and pitch. The upper blade holds the first steel cord in place, while the lower blade moves the second steel cord, activating the traction device to evenly strip away the rubber covering. This ensures a precise and uniform separation of the steel cords from the rubber.
The device is perfect for use on-site where splicing is required. It grips the steel cords securely and efficiently strips the rubber, leaving a clean separation. The whole process is quick, efficient, and mess-free, making it an ideal solution for preparing steel cord conveyor belts for further processing.
When using the Steel Cord Conveyor Belt Stripper, the stripping machine should be securely fixed to prevent any slipping or movement. These precautions ensure both safety and the smooth operation of the device.
The Steel Cord Conveyor Belt Stripper runs on a 1.5KW motor, and it operates on a 380V voltage system. With a line speed of 0.3m/s, it ensures efficient operation without unnecessary delays. The device is capable of handling steel cord diameters ranging from φ4.9mm to φ13.2mm and is suitable for cable spacing between 10mm and 25mm. It can work with conveyor belts that have a rubber layer thickness of up to 43mm, including a carrying surface thickness of up to 25mm and a non-carrying surface thickness of up to 12mm. This makes it a versatile solution for a wide range of steel cord belts, delivering reliable and effective performance.
The Steel Cord Conveyor Belt Stripper is designed to efficiently prepare steel cord belts for splicing by separating the steel cord from the rubber. It is suitable for various industries, including power plants, mining, steelworks, wharfs, and petrochemical sectors. Easy to operate, the stripper works effectively even in confined spaces.
This equipment significantly reduces the time needed for belt preparation, minimizing downtime and boosting productivity. Additionally, it lowers physical strain on operators compared to manual methods, making the process faster and more efficient while ensuring precise control over the rubber thickness for optimal vulcanization results.
The Steel Cord Stripper is an essential tool for anyone working with steel cord conveyor belts. It significantly reduces repair time, minimizes operator effort, and enhances the overall efficiency of the repair process. This device is vital for efficiently stripping and separating the steel cords from the belts, making it an indispensable part of any conveyor belt maintenance toolkit. If you’re looking to improve the speed and effectiveness of your belt repairs, this tool is definitely a must-have.
